Sandwich-style dev board runs Linux on Zynq-7000

The MYD-C7Z010/20 development board is built around the MYC-C7Z010/20 CPU Module which is a compact Linux-ready ZYNQ-based SOM (System on Module). The MYC-C7Z010/20 combines the Xilinx XC7Z010-1CLG400C or XC7Z020-1CLG400C SoC device, 1GB DDR3 SDRAM, 4GB eMMC, 32MB quad SPI Flash, a Gigabit Ethernet PHY, a USB PHY and external watchdog.

It is connected to the MYD-C7Z010/20 base board through two 0.8mm pitch 140-pin board-to-board connectors.

The MYD-C7Z010/20 development board takes full features of the Zynq-7010 and Zynq-7020 SoCs’ powerful dual-core ARM Cortex-A9 processing system and Xilinx 7-series Field Programmable Gate Array (FPGA) logic unit to create a rich set of peripherals to the base board through headers and connectors including one RS232 serial port, four USB Host ports, one Gigabit Ethernet port, CAN, HDMI, LCD/Touch screen, TF card slot, RTC, one XADC header to allow you take advantage of Xilinx XADC; it has three PMoD headers to meet your I/O needs with PMoDs (only for 7020); it also has a low-pin count FMC connector to allow various FMC cards for custom I/O options. User can integrate a MYC-C7Z010 or a MYC-C7Z020 SOM on the same base board, thus making two variants of Zynq evaluation boards.

MYD-C7Z010/20 Development Board

The MYD-C7Z010/20 development board is delivered with necessary cable accessories and MYIR offers optional 4.3-inch and 7-inch LCD Module. The board is preloaded with Linux. It is a high-performance and low-cost development platform for evaluation and prototype based on Xilinx Zynq-7000 All Programmable SoC family.

Features

Mechanical Parameters

  • Dimensions: 190mm x 110mm (base board), 75mm x 55mm (CPU Module)
  • PCB layers: 4-layer design (base board), 10-layer design (CPU Module)
  • Power supply: 12V/0.5A (base board), 5V/0.5A (CPU Module)
  • Working temp.: 0~70 Celsius

The MYD-C7Z010/20 Controller Board (MYC-C7Z010/20 CPU Module)



MYC-C7Z010/20 Top-view                                                               MYC-C7Z010/20 Bottom-view

SoC

  • Xilinx XC7Z010-1CLG400C (Zynq-7010) or XC7Z020-1CLG400C (Zynq-7020)
  • - 667MHz ARM® dual-core Cortex™-A9 MPCore processor (up to 866MHz)
    - Integrated Artix-7 class FPGA subsystem
    with 28K logic cells, 17,600 LUTs, 80 DSP slices (for XC7Z010)
    with 85K logic cells, 53,200 LUTs, 220 DSP slices (for XC7Z020)
    - NEON™ & Single / Double Precision Floating Point for each processor
    - Supports a Variety of Static and Dynamic Memory Interfaces

Memory

  • 1GB DDR3
  • 4GB eMMC
  • 32MB QSPI Flash (16MB is optional)

Peripherals and Signals Routed to Pins

  • 10/100/1000M Ethernet PHY
  • External watchdog
  • Three LEDs
  • - One blue LED for power indicator
    - One red LED for FPGA program done indicator
    - One green user LED

  • Two 0.8mm pitch 140-pin board-to-board expansion connectors bring out below signals:
    - One Gigabit Ethernet
    - One USB OTG 2.0
    - Two Serial ports
    - Two I2C
    - Two CAN BUS
    * Serial ports, I2C and CAN signals will be reused in PS part, or implemented through PL pins
    - Two SPI (can be implemented through PL pins)
    - ADC (one independent differential ADC, 16-channel ADC brought out through PL pins)
    - One SDIO

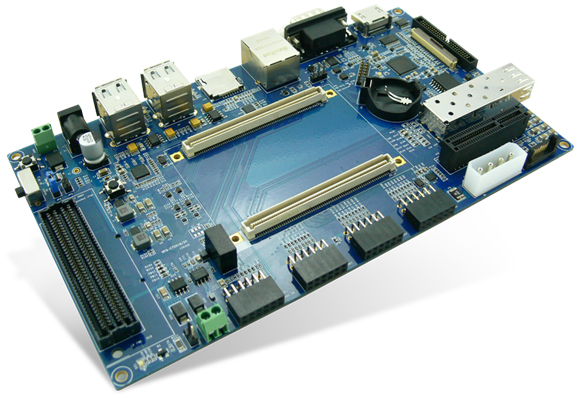

The MYD-C7Z010/20 Base Board (MYB-C7Z010/20)

MYD-C7Z010/20 Base Board (MYB-C7Z010/20)

PS Unit

  • Four USB 2.0 Host ports (through USB Hub)
  • One RS232 (DB9 port)
  • One TF card slot (bootable)
  • One CAN interface
  • One 10/100/1000M Ethernet
  • One 2.54mm pitch 14-pin JTAG interface (PS, PL reused)
  • Battery backed RTC
  • One User Button (One I2C, can be connected to LCD and Resistive Touch Screen)
  • Jumpers
  • - One for booting selection from TF card or QSPI
    - One for JTAG selection for using PS and PL reused or independent JTAG configured through PL pins
    - One for selection if adding FMC module to JTAG

PL Unit

  • One XADC interface
  • One Xilinx standard LPFMC interface
  • One HDMI interface (16-bit YCrCb, support 1080p display, do not support audio)
  • LCD/Touch screen interface (16-bit RGB, signals reused with HDMI, supports resistive and capacitive touch screen)
  • Two LEDs (one for FMC module detection, one for power indicator)
  • Three-channel PMoD (only for XC7Z020)

Hardware Features

The Zynq™-7000 family of devices combines the software programmability of a Processor with the hardware programmability of an FPGA, resulting in unrivaled levels of system performance, flexibility, scalability while providing system benefits in terms of power reduction, lower cost with fast time to market. Unlike traditional SoC processing solutions, the flexible programmable logic of the Zynq-7000 devices enables optimization and differentiation, allowing designers to add peripherals and accelerators to adapt to a broad base of applications.

The Zynq-7000 AP SoC leverages the 28nm scalable optimized programmable logic used in Xilinx’s 7 series FPGAs. Each device is designed to meet unique requirements across many use cases and applications. The Z-7010, Z-7015, and Z-7020 leverage the Artix®-7 FPGA programmable logic and offer lower power and lower cost for high-volume applications. The Z-7030, Z-7035, Z-7045, and Z-7100 are based on the Kintex®-7 FPGA programmable logic for higher-end applications that require higher performance and high I/O throughput.



Z-7010

Z-7015

Z-7020

Z-7030

Z-7035

Z-7045

Z-7100

Processor Core

Dual ARM® Cortex™-A9 MPCore™ with CoreSight™

Processor Extensions

NEON™ & Single / Double Precision Floating Point for each processor

L1 Cache

32 KB Instruction, 32 KB Data per processor

L2 Cache

512 KB

On-Chip Memory

256 KB

Memory Interfaces

DDR3, DDR3L, DDR2, LPDDR2, 2x Quad-SPI, NAND, NOR

Peripherals

2x USB 2.0 (OTG), 2x Tri-mode Gigabit Ethernet, 2x SD/SDIO

Logic Cells

28K Logic Cells

74K Logic Cells

85K Logic Cells

125K Logic Cells

275K Logic Cells

350K Logic Cells

444K Logic Cells

BlockRAM (Mb)

240 KB

380 KB

560 KB

1,060 KB

2,000 KB

2,180 KB

3,020 KB

DSP Slices

80

160

220

400

900

900

2,020

Transceiver Count



4 (6.25 Gb/s)



up to 4 (12.5 Gb/s)

up to 16 (12.5 Gb/s)

up to 16 (12.5 Gb/s)

up to 16  (10.3125 Gb/s)



Zynq-7000 Devices

MYD-C7Z010/20 Function Block Diagram

Dimensions of MYD-C7Z010/20

Datasheet
